Customized Chatbots¶

Before reading this page, you should be familiar
with everything on the Running the Game page.

Beginning¶

Chatbots follow scripts which are a series of questions with information on what to do with the answers. Scripts also have accompanying information on what to do with the entire set of answers, and what to say to the target member. Think of a script like the piece of paper a survey-taker would use.

Every script requires a table in the bot's database, where every row is one completed chatbot. Every question needs a column on the table to store the answer.

The two big, default, required chatbots are registration and tag_logging. Your HvZ game is unique, and requires questions phrased for your situation. By default, the registration script comes with a question for the member's CPO number (that's the school post-box address). Well, your game may not need that. This page will teach you how to remove that question, add new ones, and customize other things in these chatbot scripts.

Scripts are stored in the scripts.yml file, written in the YAML configuration language. It is recommended to use a code editor such as Notepad++ or one one of many other options.

There are two types of chatbots: modal and non-modal. A modal chatbot shows the user a pop-up window that contains all the questions of the script. By default, the tag_logging chatbot is modal. Modal chatbots are faster to use—especially on mobile—but have tighter restrictions than non-modal.

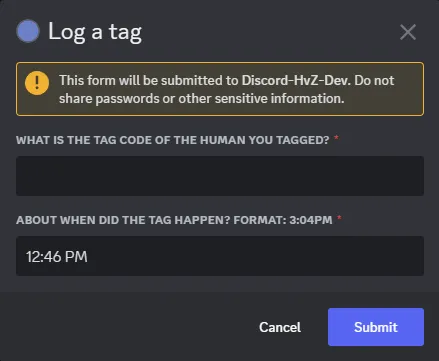

Modal Example:

Sheet ID

Modal Restrictions

All valid modal chatbots are also valid non-modal chatbots, except for the modal: true field.

No more than 5 questions
No more than 45 characters in a question query
No button_options to select answers

Example Modal Script

tag_logging:
  table: tags
  modal: true
  beginning: Let's log a tag. Type 'cancel' at any time to stop this conversation.
  ending: Tag logged! Make sure your newly-brainless friend feels welcome in the hoard.
  starting_processor: tag_logging_start
  ending_processor: tag_logging_end
  questions:
  - column: tagged_id
    display_name: Tag Code
    query: What is the tag code of the human you tagged?
    valid_regex: '[a-zA-Z\d]{6}'
    rejection_response: 'Invalid tag code. The tag code is 6 characters of numbers and capital
      letters. None of these: 0 O Q I 1 D V U 5 S 2 Z'
    processor: tag_code_to_member_id
  - column: tag_time
    display_name: Tag Time
    query: "About when did the tag happen? Format: 3:04pm"
    valid_regex: '(?i)\d{1,2}:[0-5]?[0-9]\s?(am|pm)\s?(yesterday)?'
    rejection_response: Please use a format like 12:26pm or 7:00 am
    modal_default: Current_Time
    processor: tag_time

Coming Up

Edit script fields
Add or remove questions
Add chatbots

Script Fields¶

Changing text your users see in a chatbot is the easiest thing. Find a phrase in the script and edit it. Surround your text in single quotes if you need to use any of the following special characters: :-{}[]!#|>&%@, or if your text is only "yes", "no", "true", "false", or something similar.

See a |- in the file? That means what comes next is a multi-line piece of text that the bot should see as literally multiple lines.

If you are unsure about using unusual text, read this reference.

Below is an example of a functional tag_logging script similar to the one the bot comes with by default. You can use this as reference as you read onward.

Any field marked as Optional can be omitted entirely and the bot will use some default instead.
The order of the fields does not matter, except that questions are displayed in the order they appear.

Example tag_logging Script

tag_logging:
  table: tags
  beginning: Let's log a tag. Type 'cancel' at any time to stop this conversation.
  ending: Tag logged! Make sure your newly-brainless friend feels welcome in the hoard.
  starting_processor: tag_logging_start
  ending_processor: tag_logging_end
  questions:
  - column: tagged_id
    display_name: Tag Code
    query: What is the tag code of the human you tagged?
    valid_regex: '[a-zA-Z\d]{6}'
    rejection_response: 'The tag code is 6 characters of numbers and capital
      letters. None of these: 0 O Q I 1 D V U 5 S 2 Z'
    processor: tag_code_to_member_id
  - column: tag_time
    display_name: Tag Time
    query: About what time did the tag happen? Use the format 3:04pm. If it was yesterday, add "yesterday" to the end.
    valid_regex: '(?i)\d{1,2}:[0-5]?[0-9]\s?(am|pm)\s?(yesterday)?'
    rejection_response: Please use a format like 12:26pm or 7:00 am
    processor: tag_time

Concise Field Reference.

script_name: # Name of the script. Only for organization. Required, unique.
  table: members # Required, unique
  beginning: Registration started! # Message that appears when the chatbot starts. Optional.
  ending: Welcome to HvZ! # Message that appears when the chatbot ends. Optional.
  starting_processor: some_function # Described later in this document. Optional.
  ending_processor: another_function # Described later in this document. Optional.
  postable_button_color: green # Chatbot button color: green, red, blurple, gray, or url. Optional.
  postable_button_label: Click Me! # Visible label on the chatbot button. Optional.
  questions: # A list of the questions. Required.
  - column: favorite_color # The database column the answer will go in. No spaces, lower case. Required, unique per script.
    display_name: Favorite Color # The name of the question the user will see. Required.
    query: Favorite color? # The question text. Required.
    valid_regex: '\D*' # The regex the answer must satisfy. Optional.
    button_options: # A list of buttons with pre-selected responses with button colors. Optional, all must pass regex.
      'Green': green # The right value (green) can be blurple, gray, green, red, or url
      'Periwinkle': red # 'Periwinkle' is the literal text response.
    rejection_response: No numbers allowed in colors. # Response if the answer fails the regex test. Required if there is "valid_regex"
    processor: favorite_color # Described later in this document. Optional

`<script title>`¶

Required, unique

In the example above, the word tag_logging at the top declares that everything indented beneath it is the tag_logging script. If this name changes, any existing buttons for this chatbot will break. This should be lowercase and without spaces.

Warning

Currently, you must have a script titled "tag_logging" and one titled "registration" for the
/tag create & /member register commands to function.

`table`¶

Required, unique.
Which table the script will be saved to. This table must be defined in the config file; see Config Options: database_tables

`modal`¶

Optional, either true or false
Is this a modal chatbot? See above for restrictions. If this field is missing, it is false.

`modal_title`¶

Optional, modal only, default: value of <script title>
The heading shown at the top of a modal. Max 45 characters.

`beginning`¶

Optional, non-modal only
default: "Starting chatbot. Reply with 'cancel' at any time to stop.
A message sent when the chatbot starts. It should inform the user that they can type "cancel" to stop the chatbot as well.

`ending`¶

Optional, default: "Chatbot complete!"
A message sent when the chatbot ends. Preferably, it should tell the player what they ought to do next.

`starting_processor`¶

Optional
The name of the starting processor function the script should use. Processors are described further below. If you make a new script and haven't made a new processor, this should be removed.

`starting_processor`¶

Optional
The name of the ending processor function the script should use. Processors are described further below. If you make a new script and haven't made a new processor, this should be removed.

`postable_button_color`¶

Optional, default: green
The color of the button used to start the chatbot. Valid values: blurple, gray, green, red, url. These colors are limited by Discord. Green by default.

`postable_button_label`¶

Optional, default: same as <script title>
The text that appears on the button used to start the chatbot.

`questions`¶

Minimum 1 question
Questions are indented beneath this heading, marked with a - as shown in the example. They are asked in the order listed here.

Question Fields¶

`column`¶

Required, unique per script
The database column the question is saves to. When the bot is working with the question, this is effectively its "name". Remember, database column names should be lower case and without spaces. A name like "most_favorite_color" is fine.

`display_name`¶

Optional, non-modal only, default: value of column
The human-friendly name users are showed when reviewing their responses.

`query`¶

Required
The text of the question. Make sure it is concise, but unambiguous for best human results. Max 45 characters if modal.

`valid_regex`¶

Optional
Regex means "regular_expression", which is a special language for pattern matching. For example, (?i)(yes|no) is a set of coded symbols that tells the program it needs to match either "yes" or "no", ignoring case.

If valid_regex is provided, the bot will check the question's answer against the regex string, and if it matches completely, the answer is accepted. Note that any leading or trailing whitespace is stripped away from answers before this.

There are many resources online for building regex, including this one: regex101.com

`rejection_response`¶

Required if valid_regex is supplied.
The response the user is sent if their answer fails the regex test. They are given the opportunity to submit another response until they send a valid one.

`button_options`¶

Optional, non-modal only
A list of buttons that will appear with the question, letting a user tap the buttons instead of typing a response. Each button is a response:color pair, where the response is the value the bot will receive, and the color is one of these: blurple, gray, green, red, url.
The response text is exactly what the bot will receive and is handled the same as typed text. Thus, the values must all pass any valid_regex set.
Follow the format in the below example precisely.

Example button_options

button_options:
  'Yes': green
  'No': red
  'Maybe': blurple

`modal_default`¶

Optional, modal only, default: None
The default value the response field is filled with when the modal is first launched. Can be text, a number, or a true / false value.
If this is set to 'current_time', the field will contain the current time minus one minute.

`modal_long`¶

Optional, modal only, default: false
If true, the response field is multi-line, suitable for long-form responses, and has a character count. If false, the field is single-line and best for short responses.
In either case, the character limit is 4000.

`processor`¶

Optional
Processors are an advanced feature described in their own section below. They can replace the functionality of regex, and make many checks that regex can't. They can customize their error responses to users, and transform the response into another form.

Add or Remove Questions¶

To add a question, these are the basic steps:

Add a new question section to a script in scripts.yml via copy-paste
Edit the values to your liking, making sure to pick a new column name
Add a new column to the database_tables section of config.yml
Delete your existing database file hvzdb.db and restart the bot, which will re-create it with your new column.
Test the chatbot!

When using copy-paste to add a new question, make sure the indentation lines up. Indentation is made with spaces, not tabs.

When adding a database column to config.yml, you should set the type to String unless you are using processors.

Warning

The bot will not add new columns to an existing database. This is called "migration" is and something the bot does not support for safety reasons. If you delete your database, the bot will create a fresh one that includes your new columns. If you need to add new columns without deleting your database, use a database editor such as DB Browser for SQLite.

You ought to thouroughly test the new question to make sure it looks the way you want, especially if you are using regex or processor functions.

To remove a question, these are the basic steps:

Delete the question section in its script in scripts.yml
Optional: Remove the column from the database table in config.yml, then delete the database and restart the bot to remake it.

Having a database column with no corresponding question is perfectly fine, though it will still appear on the Google Sheet.

Custom Processors¶

A script or question processor is a python function that, given a user response, determines how the bot should react. For example, when a player enters a tag code into the Tag Logging chatbot, the response is sent through a question processor function which finds a match for that code in the database. If there's a match, it returns the tagged player's ID which is saved as the question response. If there's no match, the player is prompted to try again. These processors could be as simple as duplicating the effects of regex, but are intended for creative uses.

Under Construction

Custom processors are a complex feature that could lead to many pitfalls. The documentation still needs to be written. For now, if you want custom functionality, contact the author of Discord-HvZ.
